RDK-994Q – 35W 40 to 1kVdc input, 24V output, low-profile traction inverter gate-drive or emergency PSU

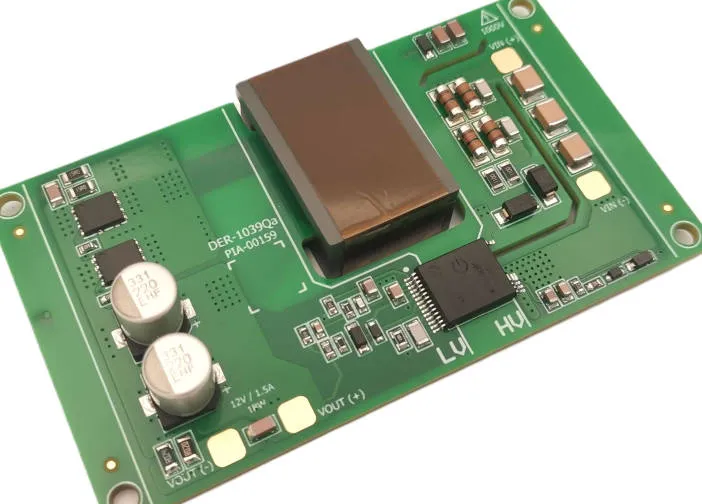

RDK-1039Q – 18W planar transformer traction inverter gate driver or emergency PSU (pictured)
RDK-1054Q – 120W planar transformer PSU to eliminate 12V battery
DER-1030Q – 20W four-output PSU: 1x 24.75Vout emergency, 3x 25.5Vout gate-drive
DER-1045Q – 16W four-output PSU: 1x 14V emergency, 3x +18V and -5V gate-drive

“The designs leverage both wound and low-profile planar transformers and target automotive applications such as dc-dc bus conversion, inverter emergency power, battery management and power supplies for auxiliary systems,” according to the company. “The designs feature [a] wide-creepage InSOP-28G package which supports 1,000Vdc on the primary side while providing appropriate creepage and clearance between pins in pollution degree 2 environments.” Drain-to-source pin creepage is 5.1mm. “It provides sufficient isolation that conformal coating can be eliminated.”
There of the designs are implemented in reference designs kits, while the other two are design example reports.
The company is to be credited for the quality of its reference designs, which are the real thing: with everything needed, including thermal data, to drop the design into a product.
